5000BPH Juice Filling Line Automatic Rinsing Filling And Capping Machine

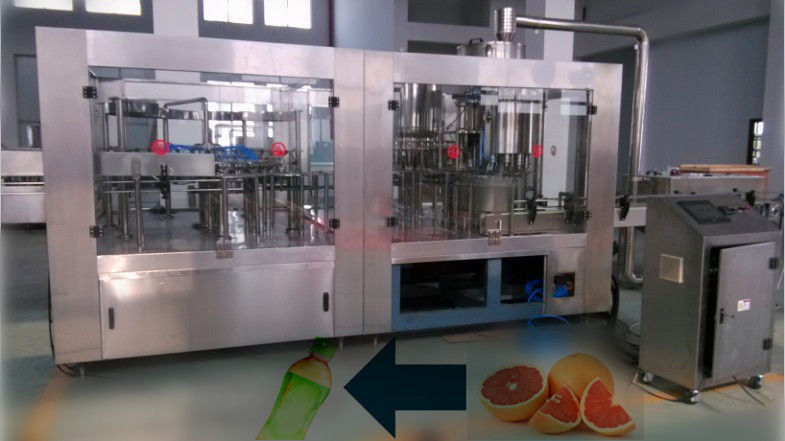

Large Image : 5000BPH Juice Filling Line Automatic Rinsing Filling And Capping Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	RoHS,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	standard Package
Delivery Time:	10-30 days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	10 sets/month

Contact Now

Detailed Product Description

Product Name:	Glass Bottle Production Line	Filling Head:	18
Washing Head:	18	Suitable Bottle:	200mL-2.5L
Capping Head:	6	Capacity:	5,000BPH(500ml Bottle)
Highlight:	rinsing filling capping machine , rotary bottle filling machine

3 In 1 Juice Filling Line Automatic Rinsing Filling And Capping Machine

Description:

Hot filling machine is the standard 3-in-1 monoblock for rinsing, pulp juice filling and capping, when for special production condition, another pulp filling could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

1, Return tank system has the function of supplying the material automatically.

2, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
3, Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
4, Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent.

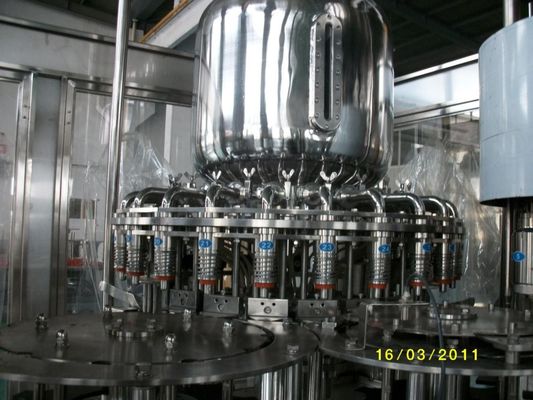

5, Sanitary filling head system is of umbrella structure, high filling speed.
6, Perfect filling temperature control system.

Specifications:

Application	Tea, hot filling of fruit meat-containing juice, fruit juice, flavored milk, functional beverages, drinking water and other beverages.
Bottle Type	PET, PVC, PP, Glass bottles
Suitable bottle Type	Bottle with size 200ml to 2500ml
Bottle Height	Bottle height. Φ160—φ340mm
Bottle Diameter	Bottle dia.φ50-φ90mm
Suitable cap type	Screw cap, Metal cap, Grand Cap
Supply Capacity for 18-18-6	5,000 bottles per hour(500ml bottle)
Filling style	Gravity/quantitative pump filling
Filling Temperature	85 to 92 ± 1 °C
Voltage	220/380V
Automatic Grade	Automatic
Driven Type: Electric	Electric
Material:	High quality SUS304/316L stainless steel
After-sales Service Provided	Engineers available to service machinery overseas
Power	3.1kw
Dimension	240018502400mm
Weight	3500KG

Competitive Advantage:

Fully automatic rinsing, filling and capping by PLC control;
No bottle no rinse;
With high filling speed and exact liquid level.
Easy to operate and maintain.
PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.
The equipment is highly mature, boasting fast and accurate spare parts services.
All product contact parts are made of qualified stainless steel, which wearable, stable with less malfunction.
