5000-30000BPH Rinsing Filling Capping Machine

I'm Online Chat Now

5000-30000BPH Rinsing Filling Capping Machine

China 5000-30000BPH Rinsing Filling Capping Machine supplier
5000-30000BPH Rinsing Filling Capping Machine supplier 5000-30000BPH Rinsing Filling Capping Machine supplier

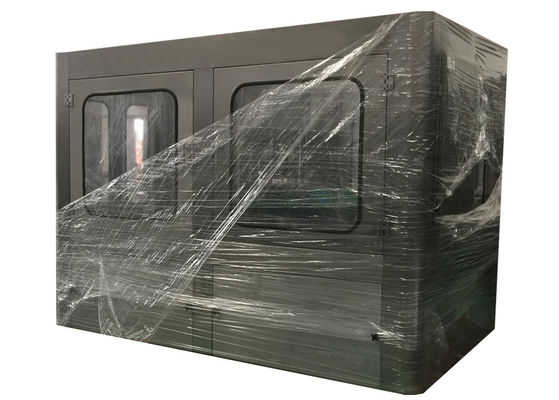

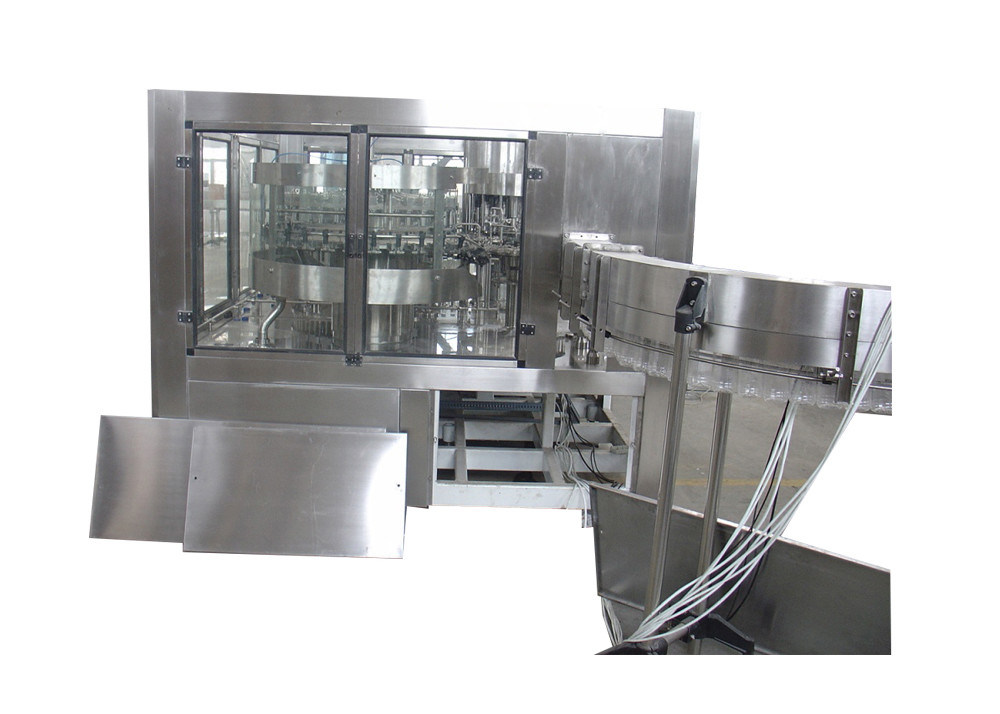

Large Image :  5000-30000BPH Rinsing Filling Capping Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: RoHS,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard Package
Delivery Time: 10-30 days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: 10 sets/month
Detailed Product Description
Name: PET Bottle Water Filling Machine Condition: New
Driven Type: Electric Application: Beverage
Packaging Type: Bottles Material: SUS304/SUS 316L
Filling Range: 200~2000ml Capacity: 5000-30000BPH
Highlight:

3 in 1 water filling machine

,

automatic washing filling capping machine

Fully Automatic PET Bottle Water Filling Machine , Rinsing Filling Capping Machine


Description:

3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Main features:

Rinser

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15 deg; Angle ensures to wash all side of the bottle, and can save the water.

Filler

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.

Capper

Screw capping machine is most precision part in the 3-in-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.



Technical parameters:



Technical Parameters:
Number of Filling Valves 12,16,24, 32, 40, 50, 60, 72,
Filling Speed 5, 000-30, 000BPH (500ml)
Type of Bottles PET Bottles of various shapes
Bottle Height 150-320(mm)
Bottle Diameter φ 50-110(mm)
Filling Temperature Hot Filling
Filling Principle Gravity Filling
Filling Product Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc.


Equipment structure:

Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Control
