Product Details:
Payment & Shipping Terms:
|
| Name: | High Viscosity Liquid Filling Machine | Filling Head: | 24 |
|---|---|---|---|
| Capping Head: | 8 | Bottle Type: | PET/PP/PE/HDPE Plastic Bottle/Glass Bottle |
| Capacity: | 8,000bph(500ml Bottle) | Bottle Shape: | Round, Square, Rectangular, Irregular |
| Washing Head: | 24 | Application: | Soda Water, Soft Drink. Carbonated Drink , Energy Drink |
| Highlight: | rinsing filling capping machine,glass bottle production line |
||
Sterlizer/Rinser/Filler/Capper for Soft Drink Juice Filling Machine 8,000BPH
Description:
1, Complete filling line includes: Water Treatment system, Blending Equipment, Chiller, Mixing Machine, Sterilizer- Rinser-Filler-Capper 4 in 1 machine, Lamp Checker, Filled bottle warming machine, Dryer, Labeling Machine, Film Shrink Machine/Carton Packing Machine and conveyors CIP system. It is a full automatic production line.

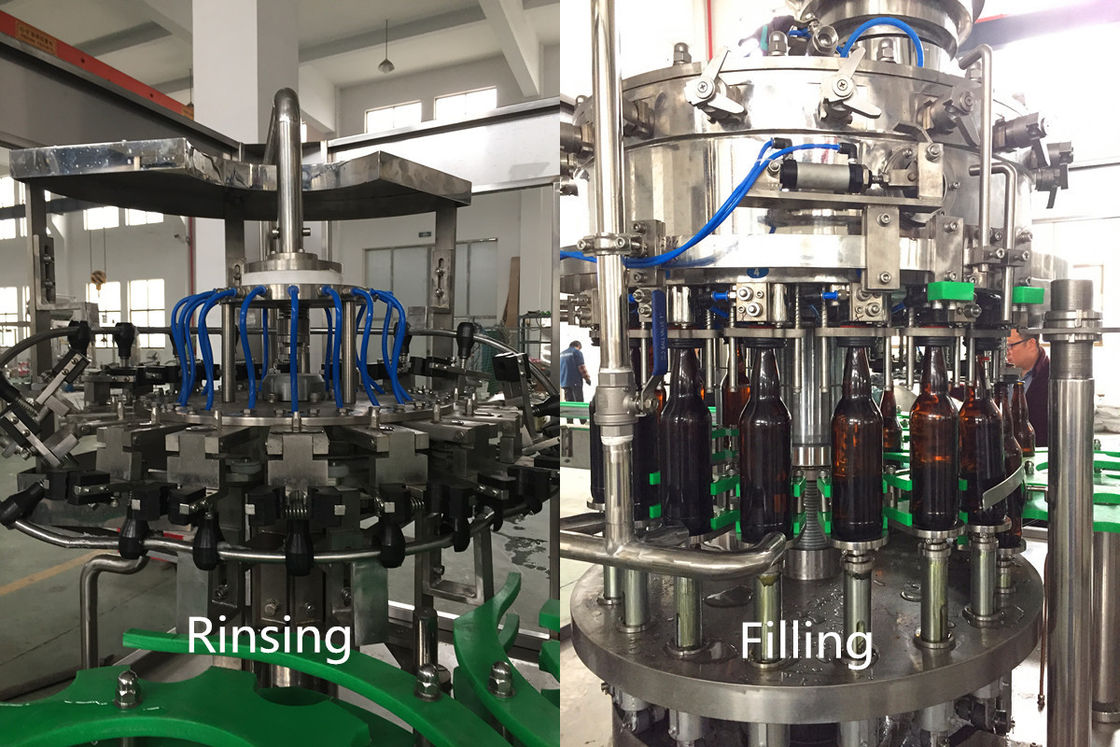

2, Sterlizing, Washing, filling and capping 4 kinds of jobs can be finished by one machine automatically, by 4-in-1 monoblock, the bottle goes through sterlizing, rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
3, Carbonated Soft Drink filling machine is used in filling soft drink, carbonated drink and etc in. Bottles made of polyester and plastics, glass. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
4, The filling operation is faster and more stable because the Isobaric filling filling operation is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
Quick Detail:
Bottle Type:200ml to 1500ml
Sterlizer Head: 24 PCS
Rinsing Head: 24 PCS
Filling Head: 24 PCS
Capping Head: 8 PCS
Machine Type: Rotary Filling Machine
Application: Soda water, Soft drink. Carbonated drink , Energy drink, Beverage drink
Full line including: Bottle Feeder, Rinser-Filler-Capper 3 in 1 machine, Lamp Checker, Filled bottle warming machine, Dryer, Labeling Machine, Film Shrink Machine/Carton Packing Machine
Cap Type: Screw cap, Pressing Cap, Sport cap, Aluminum Cap, Crown Cap
We supply 3, 000 to 15,000 bottles/hour
Capacity: 8,000 bottles/hour(500ml)
Dimension: 3500*2200*2400mm(L*W*H)
Weight: 4500kg
Bottle Type: PET/PP/PE/HDPE Plastic Bottle, Glass bottle
Warranty: 1 year and free spare parts in one year
Engineers available to service machinery overseas
Specifications:
|
Application |
Soda water, Soft drink. Carbonated drink , Energy drink, Beverage drink |
|
Suitable bottle Type |
PET/Glass bottle with size 200ml to 1500ml |
|
Bottle Height suitable |
Bottle height. Φ160—φ340mm |
|
Bottle Diameter suitable |
Bottle dia.φ50-φ90mm |
|
Suitable cap |
Screw cap, Pressing Cap, Sport cap, Aluminum Cap, Crown Cap |
|
Capacity for DCGF18-18-6 |
8,000 bottles per hour(500ml bottle) |
|
Filling style |
Isobaric filling |
|
Filling Temperature |
Ambient |
|
Voltage |
220/380V Custom made |
|
Automatic Grade |
Automatic |
|
Driven Type: Electric |
Electric |
|
Material: |
High quality SUS304/316L stainless steel |
|
After sale Service Provided |
Engineers avaliable to service machinery overseas |
|
Power |
3.8kw |
|
Weight |
4500KG |
|
Dimension |
3100*2200*2400mm(L*W*H) |
