Product Details:
Payment & Shipping Terms:
|
| Name: | Juice Filling Line | Productivity: | 28000bph |
|---|---|---|---|
| Filling Heads: | 60 | Capping Heads: | 60 |
| Power(kw): | 11.2 | Bottle Height: | 150-340mm |
| Highlight: | fruit juice processing equipment,glass bottle filling machine |
||
Full Automation Mango Juice Filling Machine / Glass Bottle Filling Machine
Feature:
1. the juice machine can carry out washing pulp filling, liquid juice filling and capping in one machine.
2. the juice machine is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
Description:
1. The Glass Bottle Juice Filling Machine Integrating with washing, filling and sealing, it has temperature control device for heat
filling and realizes full automation in the whole process, suitable for non-carbonated drinks, such as, apple juice ,orange juice and etc.
2. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when thereis no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
3. The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
4. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling,stable and reliable. Compared with the machines of the same specification, the benefit of the machine is larger.
Specification:
| Model: | CGFR18-18-6 | CGFR24-24-8 | CGFR32-32-10 | CGFR40-40-12 | ||
| capacity :500ml | 6000 | 8000~10000 | 12000 | 16000 | ||
| bottle shape: | round or square | |||||
| cap: | PE srew cap | |||||
| filling precision: | ≤±5mm | |||||
| illing pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | ||
| rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | ||
| filling volume :(L) | 3.5 | 4 | 6 | 8 | ||
| overall size:(mm) | 2450*1800 *2350 | 2780*2200 *2350 | 3600*2650 *2350 | 3800*2950 *2400 | ||
| weight: (kg) | 3500 | 4500 | 5500 | 6500 | ||
Details:

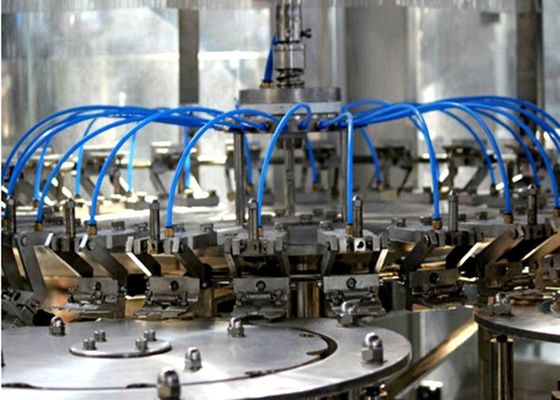

1. Rinsing Part
Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.

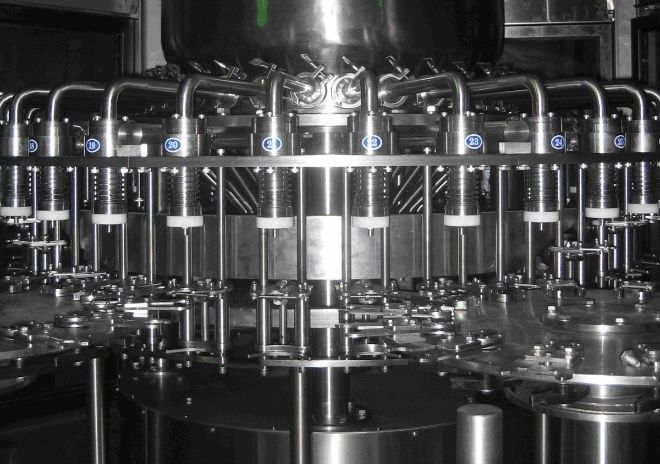

2. Filling Part
Adopt hot filling method. There is an air return pipe inside the filling valve to control the filling level; Such filling method is the easiest way of filling machine.
