Product Details:
Payment & Shipping Terms:
|
| Name: | Juice Bottle Filling Machine | Function: | Washing Filling Capping |
|---|---|---|---|
| Driven Type: | Electric | Material: | SUS304/SUS 316L |
| Filling Material: | Juice/Tea/Milk Etc. | Capacity: | 5000-30000BPH |
| Highlight: | 3 in 1 water filling machine,pet bottle water filling machine |
||

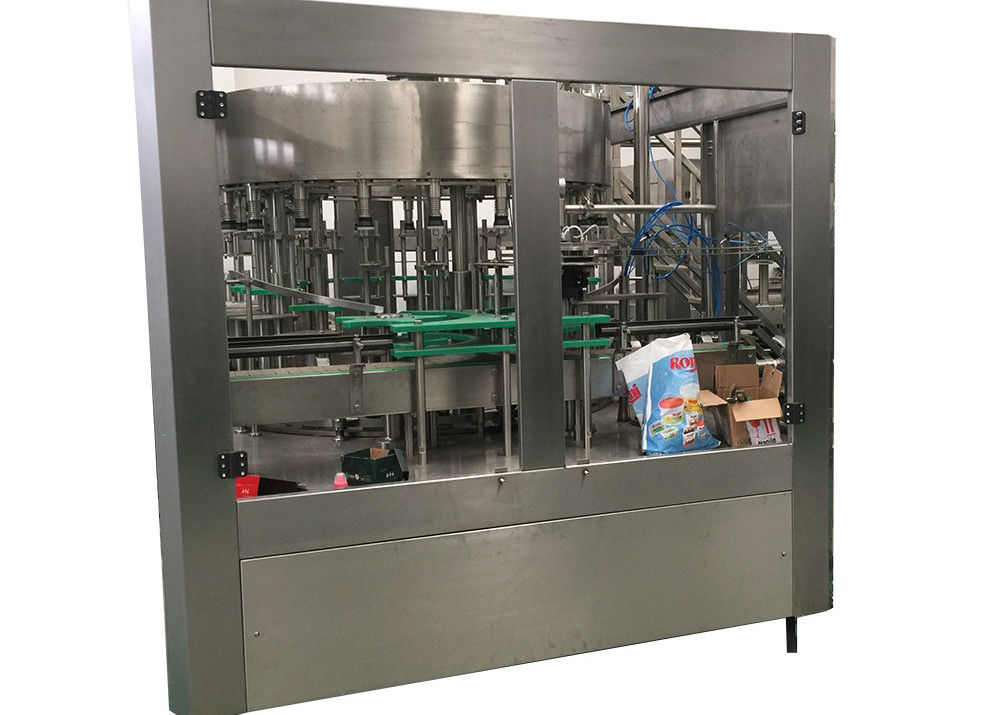

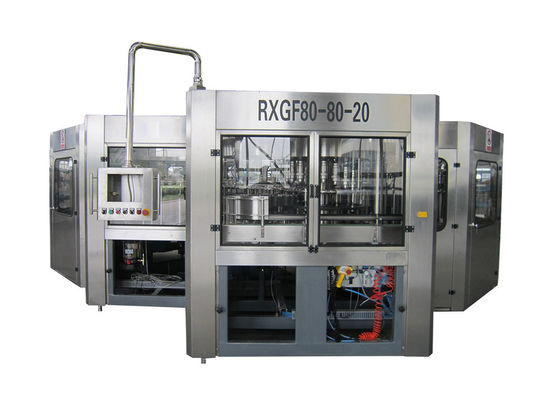

Full Automatic Aseptic Juice Filling Machine Carbonated Beverage Bottling Equipment
Technical parameters:
| Technical Parameters: | |
| Number of Filling Valves | 12,16,24, 32, 40, 50, 60, 72, |
| Filling Speed | 5, 000-30, 000BPH (500ml) |
| Type of Bottles | PET Bottles of various shapes |
| Bottle Height | 150-320(mm) |
| Bottle Diameter | φ 50-110(mm) |
| Filling Temperature | Hot Filling |
| Filling Principle | Gravity Filling |
| Filling Product | Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc. |
Product Application
Best juicers packaging machinery manufacturer 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks,functional water, various juice drinks, tea,flavored water,flavored milk on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Details
Bottle infeed
Bottle infeed by combination of infeed starwheels.
Equipped with bottle jam protection device.
Bottle Rinser
1 The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Made of stainless steel of superior quality.
7. Equipped with bottle jam protection device.
Bottle Filling
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.
Bottle Capping
1. It import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2. In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.
