| Name: | Carbonated Can Filling Machine Line | Capping Head: | 6 |
|---|---|---|---|
| Filling Speed: | 4000 Pcs Per Hour | Weight: | 2000kg |
| Filling Head: | 18 | Bottle Type: | Aluminum Cans ,tins Latas |
| Highlight: | automatic soda filling machine,carbonated juice machine |
||

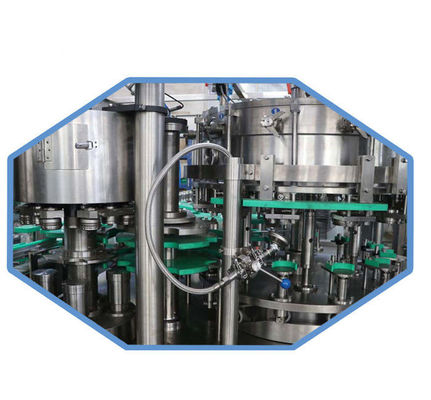

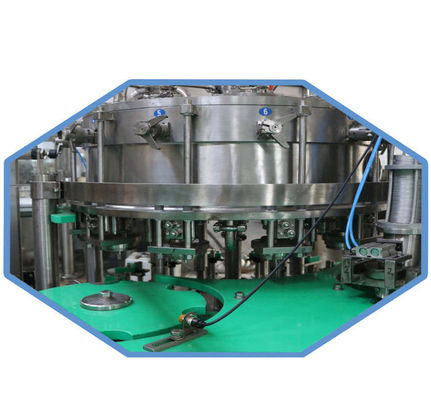

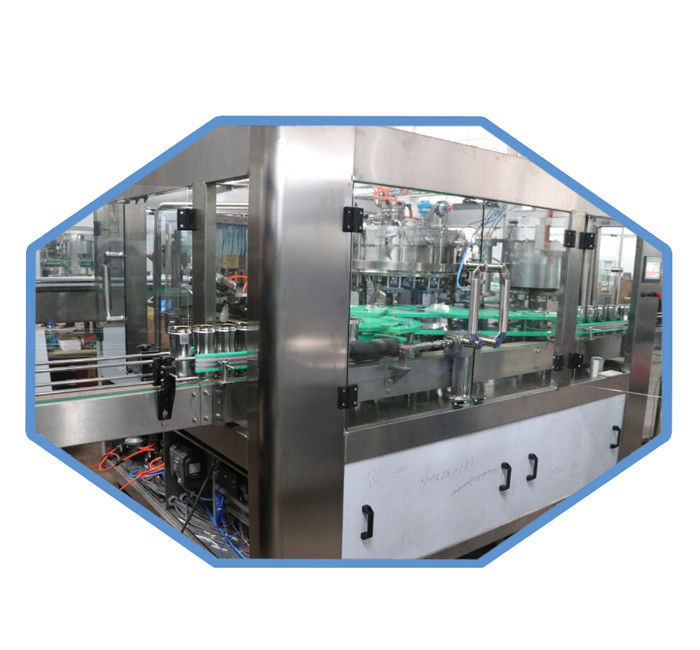

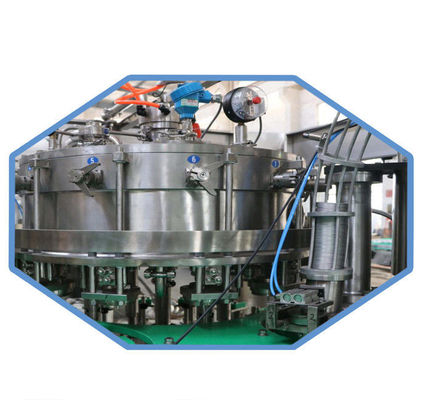

Beverage Can Filling Machine , 2-1 Full Automatic Carbonated Juice Machine
Feature
this carbonated juice machine adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.
Application :
carbonated drink juice can filling-sealing 2-1 machine is a filling sealing 2 in 1 machine designed combined with the actual situation in our country after the introduction and absorption.
Technical parameters :
| Containers and Specifications | ||||
|
Project Name:
Full-automatic carbonated drink filling machine |
soft drink ,sparkling wter,carbonated drinks etc. | |||
| Bottle Material | Bottle Shape | Filling Range | Capacity | Filling level (mm) |
| PET / PP / PE / Glass / Metal | Round / Square / Unique Shape |
200ml-2L | As request | Distance from bottle neck According request |
| Filling method | normal pressure | |||
| Bottle components | rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps | |||
| Filling precision | limit deviation: ±1% | |||
| User Electrical Supply Specification | Voltage:380V±5%, 3phase; Frequency:50HZ±1% | |||
