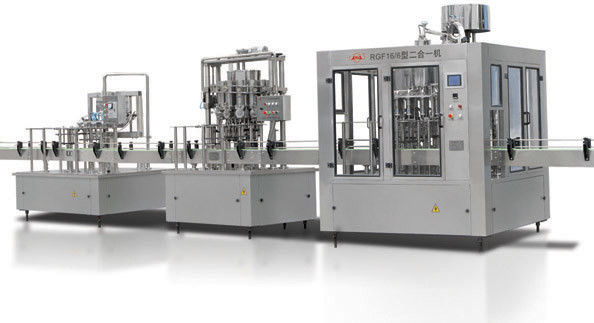

5000-700BPH Automatic Mango Juice Filling Machine / Grain Orange Juice Machine

I'm Online Chat Now

5000-700BPH Automatic Mango Juice Filling Machine / Grain Orange Juice Machine

China 5000-700BPH Automatic Mango Juice Filling Machine / Grain Orange Juice Machine supplier
5000-700BPH Automatic Mango Juice Filling Machine / Grain Orange Juice Machine supplier 5000-700BPH Automatic Mango Juice Filling Machine / Grain Orange Juice Machine supplier

Large Image :  5000-700BPH Automatic Mango Juice Filling Machine / Grain Orange Juice Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: RoHS,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard Package
Delivery Time: 10-30 days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: 10 sets/month
Detailed Product Description
Name: Fruit Juice Filling Machine Bottle Size: 500ml
Filling System: PLC Filling Valves: 18
Capacity: 5000-700BPH (500ml) Controling Voltage DC: 24V
Volume: 1.5L, 2L, 2.5L, 3L Juice: Apple Juice, Orange Juice
Highlight:

fruit juice processing equipment

,

juice bottle filling machine

 SUS304 Automatic Mango Juice Filling Machine / Grain Orange Juice Machine



Description:



1. juice filling machine / bottling machine is made of high quality SS304/SS316 stainless steel.Main components are processed precisely by CNC machine tool.The machine adopts advanced photoelectriaity to detect running status.No bottle no filling.

3. We can produce the 3 in 1 fruit juice filling machine/bottling machine according to customer special bottle sample, such as 1.5L, 2L, 2.5L, 3L big bottle, the juice container with handle or not.

3.  fruit juice filling machine 3 in 1 is possible to realize manmachine conversation because of applying touch screen for operation.



Specification:

1. automatic washine filling capper
3. material: ss304 food grad
2. capacity1000-20000BPH

Feature:



1. Sanitary filling head system is of umbrella structure, high filling speed.
2. Perfect filling temperature control system.
3. Return tank system has the function of supplying the material automatically.
4. Perfect CIP system



Details:

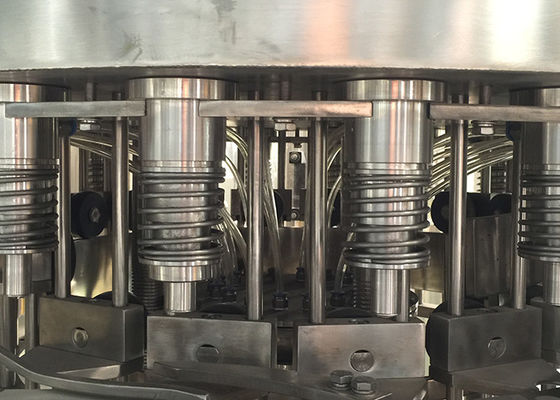

1. The filling valve material is SUS304
2. The filling system has liquid level automatic control.

3. The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within 2mm
4. Bottle is conveying by the wheel in the filling part.

5. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.
6. The juice or other hot beverage can be backflow by return tank to control filling temperature.





5000-700BPH Automatic Mango Juice Filling Machine / Grain Orange Juice Machine5000-700BPH Automatic Mango Juice Filling Machine / Grain Orange Juice Machine

Tag:bottle filler,capping machine,filling machine,small juice filling machine
