Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mango Juice Filling Machine | Washing Head: | 50 |
|---|---|---|---|
| Filling Head: | 50 | Suitable Bottle: | 200mL-2.5L |
| Capping Head: | 15 | Capacity: | 24,000BPH(500ml Bottle) |
| Application: | Tomato/Apple/Orange/Grapefruit Juice, Pulp Juice, Tea Etc | ||
| Highlight: | glass bottle production line,rotary bottle filling machine |
||

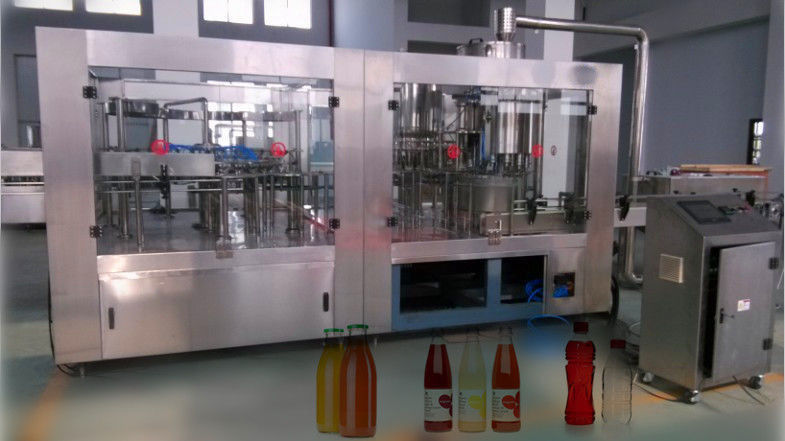

24000BPH Juice Filling Line PLC Control Soft Drink Bottling Equipment
Description:
1, Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent.
2, Perfect filling temperature control system.
3, Return tank system has the function of supplying the material automatically.
4, Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.

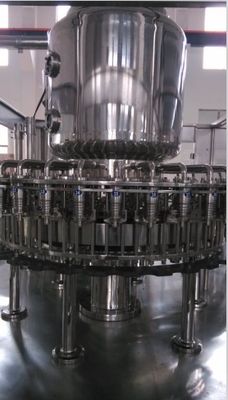

5, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

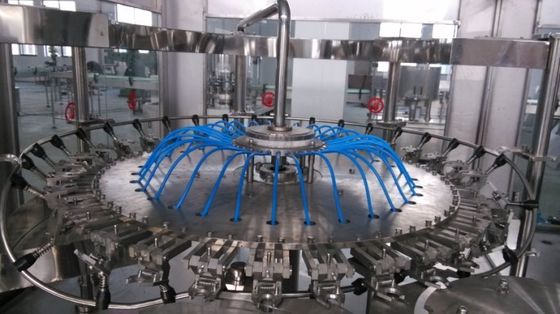

6 Sanitary filling head system is of umbrella structure, high filling speed.
Specifications:
|
Bottle Type |
PET, PVC, PP, Glass bottles |
|
Suitable bottle |
Bottle with size 200ml to 2500ml |
|
Bottle Height |
Bottle height. Φ160—φ340mm |
|
Bottle Diameter |
Bottle dia.φ50-φ90mm |
|
Suitable cap type |
Screw cap, Metal cap, Grand Cap |
|
Supply Capacity |
24,000 bottles per hour(500ml bottle) |
|
Filling style |
Hot Filling |
|
Filling Temperature |
85 to 92 ± 1 °C |
|
Voltage |
220/380V |
|
Automatic Grade |
Automatic |
|
Driven Type: Electric |
Electric |
|
Material: |
High quality SUS304/316L stainless steel |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
|
Power |
9.6kw |
|
Dimension |
5450*3210*2400mm |
|
Weight |
10,000KG |
Application: Tea, hot filling of fruit meat-containing juice, fruit juice, flavored milk, functional beverages, drinking water and other beverages.
Quick Detail:
We supply 2,000 to 24,000 bottles/hour
Capacity: 24,000 bottles per hour (500ml)
Bottle Type: 200ml to 2.5L
Washing Head: 50 PCS
Filling Head: 50 PCS
Capping Head: 15 PCS
Machine Type: Rotary Filling Machine
Engineers available to service machinery overseas
Full line including: Water Treatment System, Fruit Pretreat, and Juice packing from Rinser-Filler-Capper 3 in 1 machine Rotary, Lamp Checker, Cooling Machine, Labeling Machine, Film Shrink Machine/Carton Packing Machine
Cap Type: Screw cap, Pressing Cap, Sport cap
Bottle Type: PET/PP/PE/HDPE Plastic Bottle/Glass bottle
Bottle Shape: Round/Square/Rectangular/Irregular
