| Product Name: | Fruit Juice Filling Machine | Filling Head: | 12-50 |
|---|---|---|---|
| Capping Head: | 6-15 | Bottle Type: | PET Bottle |
| Capacity: | 1000-24000bph(500ml Bottle) | Suitable Bottle: | 200mL-1.5L |
| Bottle Shape: | Round, Square, Rectangular, Irregular | Application: | Apple/Orange/Grapefruit Juice, Pulp Juice, Tea Etc |
| Highlight: | glass bottle production line,rotary bottle filling machine |
||

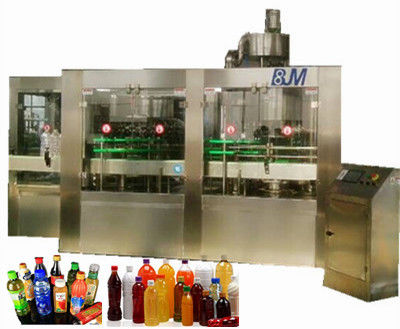

PET Bottled Juice Filling Machine Automatic For Apple / Orange/grapefruit Juice Plant 1000bph - 24000bph
Introduction
Automatic Washing-Pulp Juice Filling-Capping 3-in-1 Machine
Automatic Washing-Pulp filling- Juice Filling-Capping 4-in-1 Machine
Filling accurately with pulp floating evently, and capacity from 2000B/H up to 24000B/H.
We also can provide full line machines from fresh fruit to juice product, include water treatment, fruit processing and blending, bottle juice filling and packaging.
Specifications:
Application | Tea, hot filling of fruit meat-containing juice, fruit juice, flavored milk, functional beverages, drinking water and other beverages. |
Bottle Type | PET, PVC, PP, Glass bottles |
Suitable bottle | Bottle with size 200ml to 1500ml |
Bottle Height | Bottle height. Φ160—φ340mm |
Bottle Diameter | Bottle dia.φ50-φ90mm |
Suitable cap type | Screw cap, Metal cap, Grand Cap |
Supply Capacity | 2,000 to 24,000 bottles per hour(500ml bottle) |
Filling style | Gravity/quantitative pump filling |
Filling Temperature | 85 to 92 ± 1 °C |
Voltage | 220/380V |
Automatic Grade | Automatic |
Driven Type: Electric | Electric |
Material: | High quality SUS304 stainless steel |
After-sales Service Provided | Engineers available to service machinery overseas |
Description:
PET Bottled Juice Filling Machine Automatic For Apple / Orange/grapefruit Juice Plant 1000bph - 24000bph
Hot filling machine is the standard 3-in-1 monoblock for rinsing, pulp juice filling and capping, when for special production condition, another pulp filling could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
1, Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent.
2, Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
3, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4, Sanitary filling head system is of umbrella structure, high filling speed.
5, Perfect filling temperature control system.
6, Return tank system has the function of supplying the material automatically.
7, Perfect CIP system
Competitive Advantage:
1, Fully automatic rinsing, filling and capping by PLC control;
2, No bottle no rinse;
3, With high filling speed and exact liquid level.
4, All product contact parts are made of qualified stainless steel, which wearable, stable with less malfunction.
5, Easy to operate and maintain.
6, PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.
7, The equipment is highly mature, boasting fast and accurate spare parts services.
