3 In 1 Monoblock Liquid Filling Machine

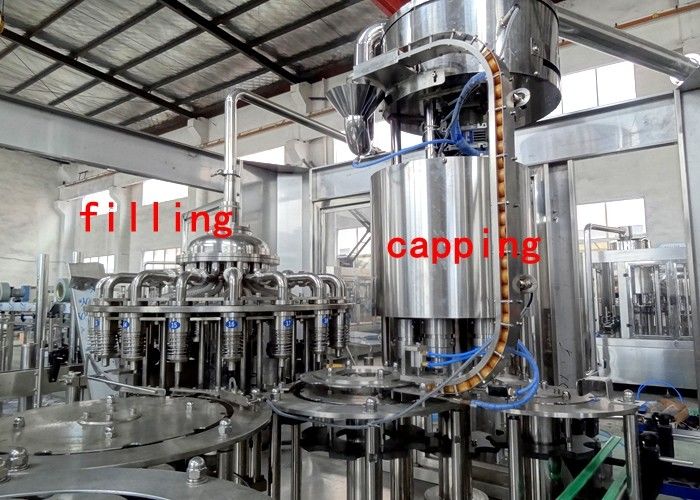

Large Image : 3 In 1 Monoblock Liquid Filling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Seaworthy Wooden Case
Delivery Time:	40 working days after down payment
Payment Terms:	T/T; L/C
Supply Ability:	10 sets/month

Contact Now

Detailed Product Description

Type:	Monoblock Filling And Capping Machine	Material:	Food Grade Stainless Steel 304
Driven Type:	Electric	Voltage:	380V 50Hz
Power:	6.68kw	Dimension(LWH):	245018002200mm
Control System:	PLC Control	Filling Capacity:	6000BPH(500ml)
Highlight:	monoblock filling and capping machine , automatic juice filling machine

3 In 1 Monoblock Liquid Filling Machine Easy Operate Apple Juice Filling Machine

Features

Complete filling line with apple juice bottle making machine 3-in-1 monoblock

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

1. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.

2. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize

the complete CIP.

3. Sanitary filling head system is of umbrella structure, high filling speed.

4. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted

5. Per fect filling temperature control system.

6. Reflux tank system has the function of supplying the material automatically.

7. Perfect CIP system.

Specifications

Complete filling line with apple juice bottle making machine 3-in-1 monoblock
1. CE,ISO,SGS certificate
2. 6000bph
3. juice filling line

4. juice making machine

Technique parameter

Productivity	6000BPH
Rinsing Head	18
Filling Head	18
Capping Head	6
Bottle Volume	350ml~2000ml±10ml
Bottle Diameter	φ50-92mm
Bottle Height	150-310 mm
Filling Tolerance	±2%
Cap Size	28mm and 30mm PE Standard Caps
Air Pressure	0.6MPa
Air Consumption	500 L/min
Gas Consumption	0.4 m3/min
Motor Power	6.68kW
Voltage	380V
Dimension	(L×W×H) 245018002200mm
Weight	3000kg
Filling Principle	Gravity Filling
