Product Details:
Payment & Shipping Terms:
|
| Name: | Hot Juice Filling Machine | Bottle Type: | Round Bottle |
|---|---|---|---|
| Filling Material: | Flowing Liquid | Material: | Stainless Steel |
| Compress Air: | 0.6m³/min | Weight Accuracy: | With An Error≤±1% |
| Highlight: | monoblock filling and capping machine,bottling juice equipment |
||

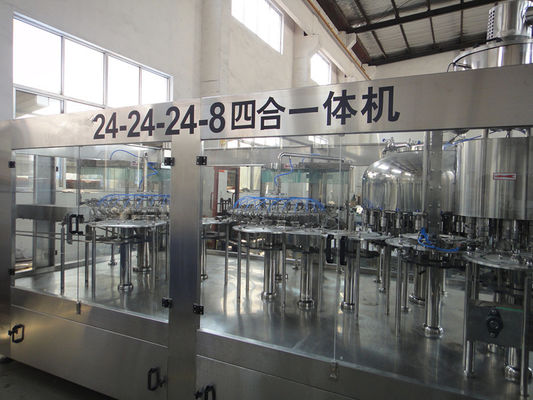

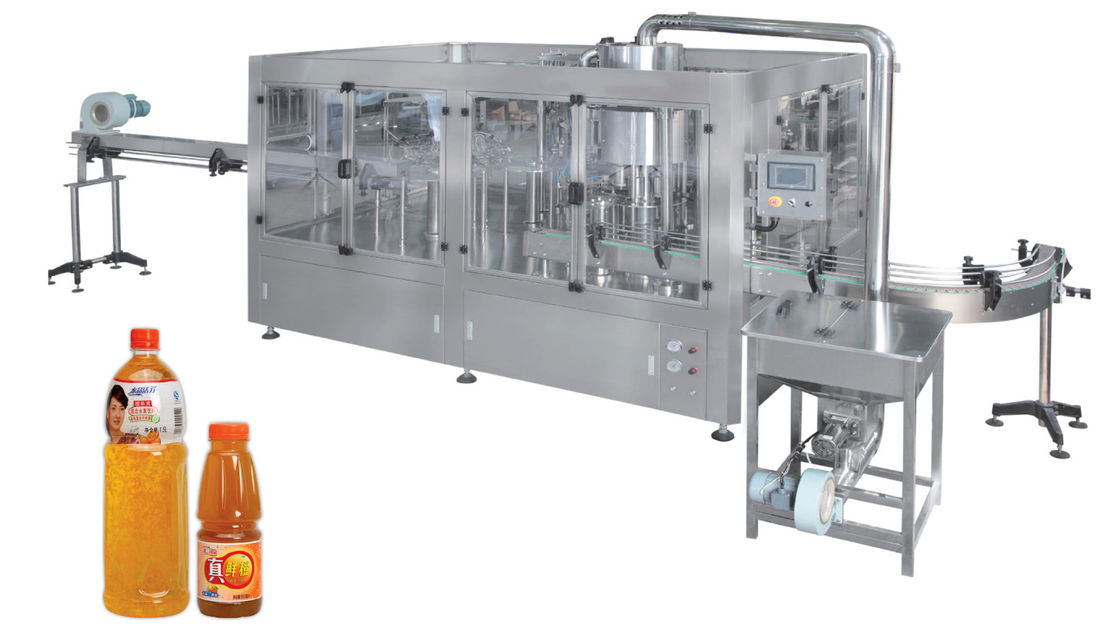

4000-6000BPH Monoblock Liquid Filling Machine / Automatic Washing Filling Capping Machine
Brief Introduction:

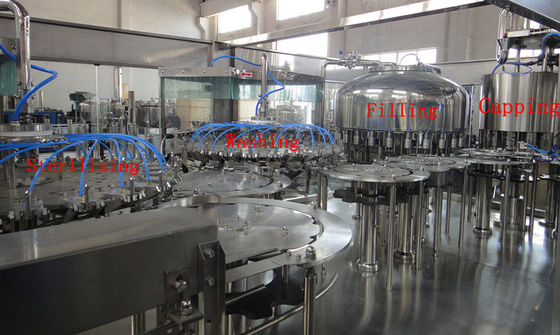

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
The automatic 4 in 1 juice filling machine was equipped with suspension type air conveyor and frequency control of motor speed.
We are the automatic 4 in 1 juice filling machine equipment manufacturer in China.
| Model | 1818186 | 2418248 | 32243210 |
| Heads of washing,filling,capping | 18-18-18-6 | 24-18-24-8 | 32-24-32-10 |
| Production capacity(500ml) | 5000-6000 | 8000-10000 | 10000-12000 |
| Suitable bottle height(mm) | Φ=50-100(330~1500ml) | ||
| Spraying pressure(Mpa) | 0.25-0.3 | ||
| Total power(kw) | 3+0.37 | 4+0.45 | 5.5 |
| Overall dimension(mm)(L*W*H) | 3500*1860*2550 | 4200*2100*2550 | 5000*2100*2850 |
| Weight (kg) | 3500 | 4650 |
6800 |
