Product Details:
Payment & Shipping Terms:
|
| Name: | Carbonated Water Filling Machine | Capping Heads: | 12 |
|---|---|---|---|
| Motor Power(kw): | 7.5 | Dimension(mm): | 4000*2700*2850 |
| Bottle Washing Consumption: | 1000kg/h | Gas Source Pressure: | 0.4Mpa |
| Filling Heads: | 40 | Rinsing Heads: | 40 |
| Highlight: | automatic soda filling machine,beverage can filling machine |
||

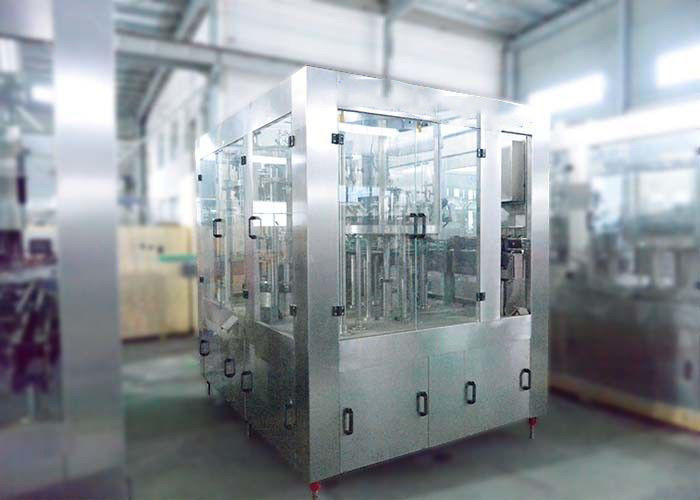

3 IN 1 Carbonated Beverage Filling Machine Easy Operate For PET Bottles
Feature:
1. The Wash-filling-capping 3-in-1 water bottled machine used to carbonated soft drink bottling process, soda water, cola drink and other carbonated beverage as well.
2. The Wash-filling-capping 3-in-1 machine can finish all the process from empty bottle rinsing, filling and sealing,
3. It can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and high cost effective.
Description:
Carbonated water filling machine is used for PET bottles ,and carbonated beverage of special equipment, unique clamping bottle filling technology, frequency control, automatic tank level control, equal pressure filling , etc. It adopts constant pressure into the fluid, and match the mixer perfectly, to avoid boiling, material inequality of production problems, contact with the material part of the materials are stainless steel 304,316 . pipe system control components are imported auxiliary equipment.
Specification:
| Capacity | 15000BPH 500ml; 5000BPH 1500ml |
| Bottle standard | 200-2000ml with same bottle diameter |
| Bottle washing position | 40 |
| Bottle filling position | 40 |
| Bottle capping position | 12 |
| Bottle washing consumption | 1000kg/h |
| Water pressure of bottle washing | 0.18-0.25Mpa |
| Gas source pressure | 0.4Mpa |
| Filling pressure | 0.4Mpa |
| Filing precision | +5MM |
| Material | Stainless Steel SUS304 |
| Automatic control systerm | PLC touch screen |
| Gas consumption(m³/min) | 0.8 |
| Total power | 7.5kw |
| Weight | 5500kg |
| Size | 3950*3150*2450MM |
