Product Details:
Payment & Shipping Terms:
|
| Name: | Pet Bottle Soda Filling Machine | Filling Heads: | 80 |
|---|---|---|---|
| Power(kw): | 18 | Shape Bottles: | Pop Cans, PET Bottles And Glass Bottles |
| Rinsing Heads: | 80 | Capping Heads: | 18 |
| Capacity: | 8000 Bottle Per Hour For 500ml Bottles | ||
| Highlight: | hot fill bottling equipment,plastic bottle filling machine |
||

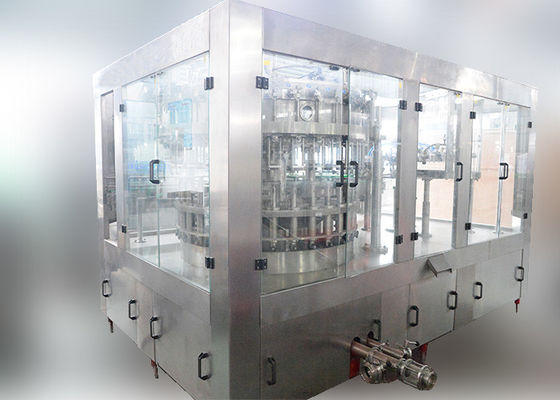

High Accurate Small Scale Beverage Filling Machine Automatic Gas Drink Bottling Machine
Feature:
1. Horizon swirl air power caps sorting device is used to avoid damagining the surface of caps,and when there is a shortage of caps in the caps storage tank,an alarm signal will be generated and the caps will be fed automatically.
2. The soft drink filling machine is controlled by PLC with touch-screen as the interface between human and machine.The amount of the drinks in the drink tank can be controlled automatically.
3. The filling and capping will be stopped automatically when there is no bottle.When bottles are cramped wrongly or caps are not avaliable,the machine can be stopped automatically.
Description:
Automatic drinking water bottling machine is used in the beverage filling operations.The three functions of bottle washing,filling and capping are composed in one body of the machine.The whole process is automatic.It is suitable for cooling/heating all kinds of bottled or canned hot beverage and carbonated beverage . The machine adopts multi-section processing mode such hot water circulating spray sterilization, warm water pre-heating and cold water cooling. The sterilizing temperature and time can be freely adjusted. It is suitable for pasteurization of beverages packed by various pop cans, PET bottles and glass bottles.
Specification:
| Model | Rinsing heads | Filling heads | Capping heads |
Capacity (BPH)500ml |
Motor Power(kw) | Dimension(mm) | Weight(kg) |
| 14-12-4 | 14 | 12 | 4 | 3000 | 2.2 | 2100*1500*2200 | 2400 |
| 18-18-6 | 18 | 18 | 6 | 5000 | 3.5 | 2300*1700*2400 | 2500 |
| 24-24-8 | 24 | 24 | 8 | 7000 | 4.5 | 2800*2200*2400 | 3500 |
| 32-32-10 | 32 | 32 | 10 | 10000 | 6.0 | 2900*2200*2500 | 5500 |
| 40-40-12 | 40 | 40 | 12 | 15000 | 7.5 | 4000*2700*2850 | 7500 |
| 50-50-15 | 50 | 50 | 15 | 22000 | 9.5 | 5300*3200*2850 | 9000 |
| 60-60-15 | 60 | 60 | 15 | 24000 | 11.2 | 5600*4500*2850 | 12000 |
