Product Details:
Payment & Shipping Terms:
|
| Name: | Beverage Can Filling Machine | Other Name: | Cold Drink Filling Machine |
|---|---|---|---|
| Rinsing Heads: | 24 | Capping Heads: | 8 |
| Washing Medium: | Aseptic Water | Filling Heads: | 24 |
| Bottle Height (mm): | 150-310 | Compressed Air Pressure(Mpa) 0.3-0.7: | 0.3-0.7 |
| High Light: | aluminum can filling machine,plastic bottle filling machine |
||

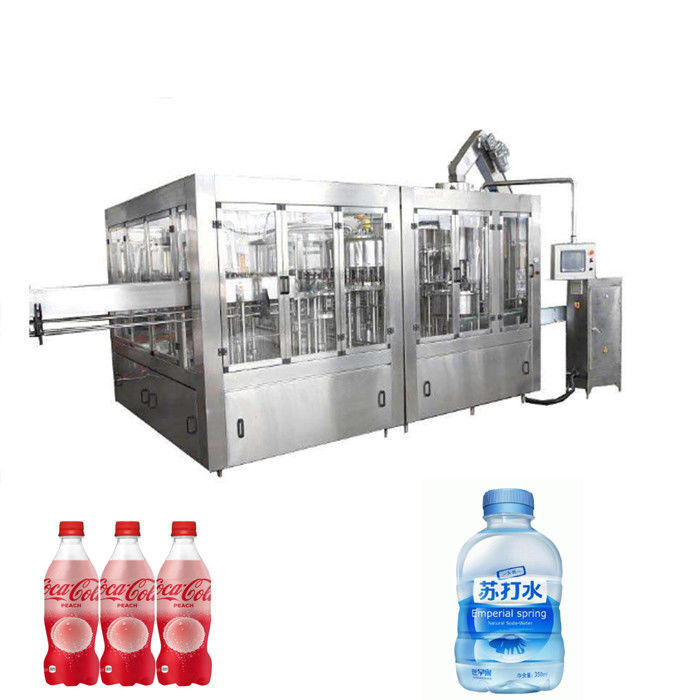

Automatic Carbonated Beverage Bottling Equipment For Carbonated Water / Soda Water
Feature:
1. The machine could be separated to 3 modules.The height of the bottle-out conveyor is adjustable.Bottles are conveyed to rinser,filler and capper through starwheel and conveyed out finally through bottle-out conveyor.Equip alarm device for bottle block,bottle absence,cap absence and overload.The machine meets the national food hygienic standard,with high automatic and easy to operate.
2. Products can be handled:Cola,carbonated water,soda water,etc.
Description:
The filling machine is a machine with advanced technologies in China, researched and developed on the basis of absorbing the advantages of the imported similar products. It is featured by reasonable and simple design, high operability, high liquid level precision, no filling in case of no bottle, etc. with stable and reliable performance and easy cleaning, Product quality is ensured.
Specifiocation:
| Model |
14-12-5 |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
50-50-15 |
60-60-15 |
72-72-18 |
|||
| Production Capacity(500ml b/h) | 2000 | 4000 | 6000 | 8000 | 10000 | 16000 | 22000 | 27000 | |||
| Washing Heads | 14 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | |||
| Filling Heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | |||
| Capping Heads | 5 | 6 | 8 | 10 | 12 | 15 | 15 | 18 | |||
| Suitable bottles | PET Round or Square | ||||||||||
| Bottle diameter(mm) | 50-90 | ||||||||||
| Bottle height (mm) | 150-310 | ||||||||||
| Compressed Air Pressure(Mpa) | 0.3-0.7 | ||||||||||
| Washing Medium | Aseptic Water | ||||||||||
| Washing water pressure(Mpa) | 0.25 | ||||||||||
| Power(Kw) | 1.5 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | |||
| Overall size(cm) | 200x161 x225 |
235x196 x225 |
301x218 x240 |
400x220 x250 |
360x280 x230 |
550x300 x230 |
620x450 x230 |
650x480 x230 |
|||
| Weight(kg) | 2200 | 3500 | 4200 | 6000 | 8500 | 9800 | 12800 | 15000 | |||
