Product Details:
Payment & Shipping Terms:
|
| Name: | Pure Water Filling Machine | Washing Head: | 40 |
|---|---|---|---|
| Filling Head: | 40 | Suitable PET Bottle Diameter: | 50~120mm |
| Suitable PET Bottle Height: | 160~340mm | Capping Head: | 12 |
| Highlight: | automatic liquid filling machine,beverage bottling equipment |
||

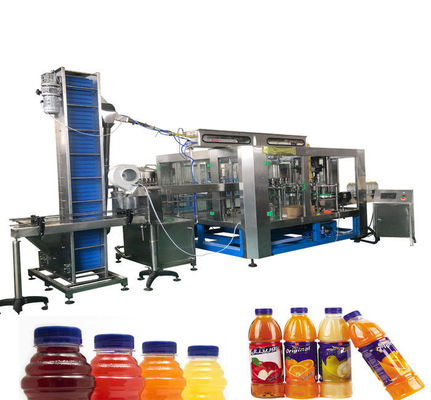

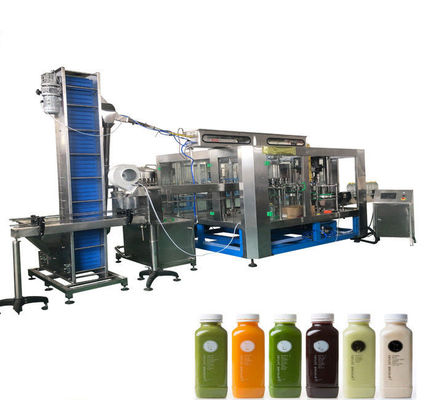

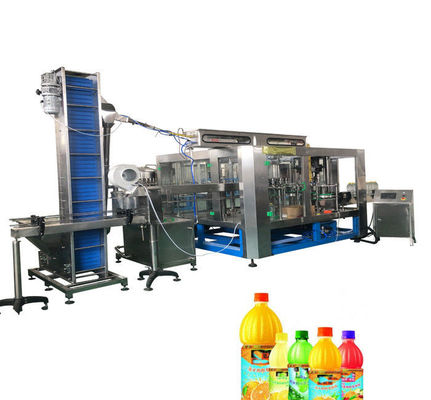

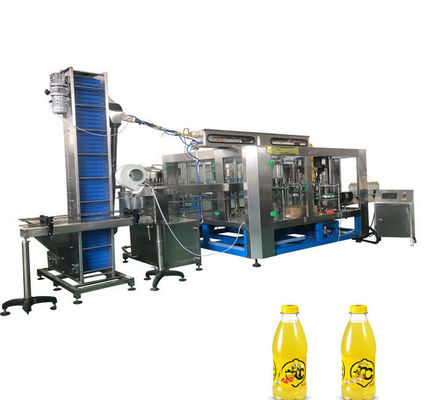

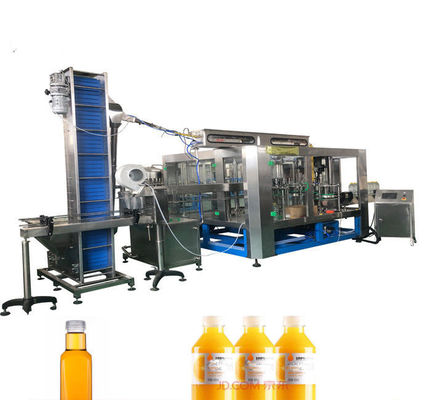

3 In 1 Concentrated Juice Bottling Machine / Juice Filling Equipment For Pet Bottle
Integrated three function:
1. Pure water rinsing the empty bottles,
2. Filling the rinsed bottles,
3. Capping the filled bottles
Water distributor combined with Food Grade Rubber plate & SUS304 cover.
SUS304 water collecting tray
Spraying inject design, can completely washing the bottles.
Filler Station
The entire filler is plunger piston filling system.
High accurate SUS304 construction filling nozzle, make sure high accurate filling level
SUS304 liquid bowl, & pipeline system.
Filling level adjustable by choosing different silicone gasket (quick change over parts)
Capper station
Place & capping system. Automatic caps arranging, feeding.
Electromagnetic capping heads, with burden discharge function,
All 304stainless steel construction
No bottle no caps delivery.
Automatic stop when lack of bottle.
Technical Parameter
| Output Capacity | 18000BPH on 500ml PET Bottle |
| Rinsing /Filling / Capping heads Quantity | 40pcs /40pcs / 12pcs |
| Suitable PET bottle size |
Bottle Diameter Φ50～Φ120mm Bottle Highness:160～260mm, Bottle neck: 28mm, for Bottle Volume 200-2250ml |
| Suitable to fill | Still Water & Non-carbonated drink |
| Washing Water Required | 1000 liter per hour |
| Washing Pressure Required | 0.3Mpa |
| Working Power | 380V AC60HZ 3-phase, (other power supply is available) |
| Control Panel Power | 24V DC |
| Compressed Air Pressure (for caps arranger) | 0.4MPa |
| Compressed Air Consumption (for caps arranger) | 0.2m3/min |
| Filling Pressure | 0.1MPA |
| Machine Dimension | 3900x2600x2350mm |
| Gross Weight | 8000kg approximately |
| Power | 2.5Kw |
