Product Details:
Payment & Shipping Terms:
|
| Name: | Beverage Bottling Machine | Capacity: | 16000bph |
|---|---|---|---|
| Capping Heads: | 12 | Filling Heads: | 40 |
| Power Of Main Motor(kw): | 12 | Filling Head: | 40 |
| Bottle: | Plastic Bottle | Weight: | 6500KG |
| Highlight: | automatic liquid filling machine,beverage bottling equipment |
||

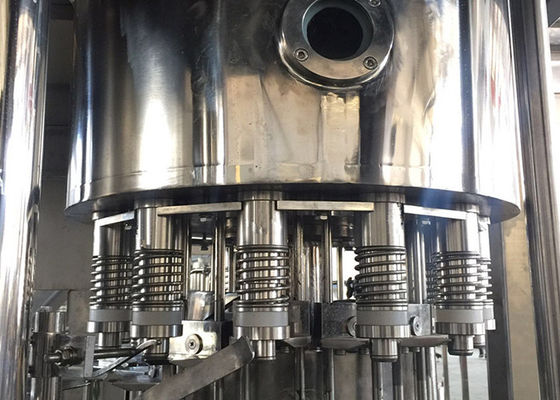

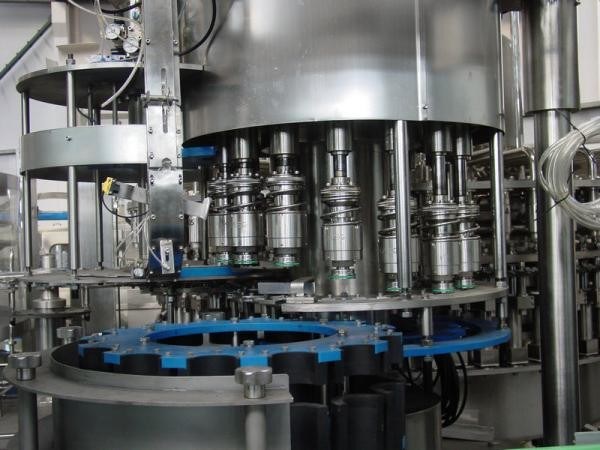

12 Capping Heads Small Scale Juice Bottling Equipment / Plastic Bottle Filling Machine
Features:
1. The PLC, transducer and other electrical elements are chosen from international famous brand
2. All the core components are made by the CNC machining center. No matter the small production line of 2000 bottles production line or the high-speed line are made by the entire CNC machine table.
3. The feedbacks of after-sale service of clients are all quick and comprehensive.
Description:
This juice sealing machine adopts advanced photoelectricity to detect running statusand total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Specification:
| Model | Washing, filling, capping heads | Production capacity(B/H) | Power of main motor(kw) | Dimentions (L*W*H) | Weight (kg) |
| 14-12-5 | 14,12,5 | 3000-4000 | 5 | 2180*1560*2300 | 2800 |
| 18-18-6 | 18,18,6 | 5000-6000 | 5 | 2250*1670*2300 | 3500 |
| 24-24-8 | 24,24,8 | 8000-12000 | 6 | 2800*1800*2300 | 4500 |
| 32-32-10 | 32,32,10 | 12000-15000 | 8 | 4300*3500*2300 | 5500 |
| 40-40-12 | 40,40,12 | 15000-18000 | 12 | 4600*3800*2300 | 6500 |
| 50-50-12 | 50,50,12 | 18000-22000 | 15 | 5000*4200*2300 | 7500 |
| 60-60-15 | 60,60,15 | 20000-25000 | 18 | 5500*4500*2300 | 9500 |
