Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Fruit Juice Filling Machine | Capacity: | 16000bph |
|---|---|---|---|
| Capping Heads: | 12 | Filling Heads: | 40 |
| Overall Size: | 100*2600*2400mm | Water Pressure Of Washing Bottle: | 0.2-0.25Mpa |
| Cap: | Screw Cap | Filling Head: | 40 |
| Highlight: | juice bottle filling machine,fully automatic bottle filling machines |
||

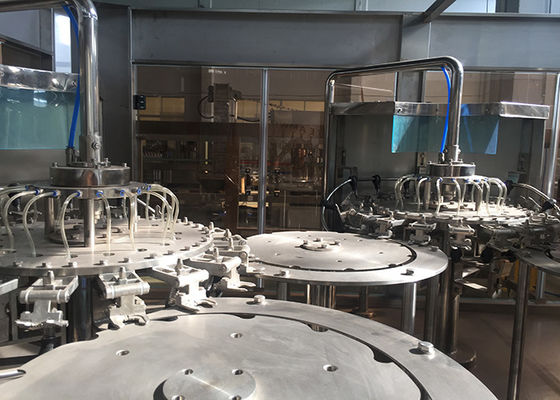

3 In1 Monobloc Automatic Juice Bottle Filling Machine / Pet Bottle Water Filling Machine
Description:
This pet bottle filling machinery has washer,filler,capper three functions in one body, total process is automatic, and it is suitable for high temperature resistant PET bottled juice and tea drink filling, it applies advanced micropressure gravity type filling principle, with perfectrecirculation system, also can reach separately gas return, without contacting with material, avoid secondary pollution and oxygen. It is made of high quality SUS304 stainless steel. Main components of this fruit juice packaging machine are processed precisely by CNC machine tool.
Feature :
1. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
2. The new designing bottle neck locking parts can reduce the pollution of the bottle. The water spray nozzlescan guarantee the complete washing of the interior of the bottle.
3. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
Specification:
| Model | RCGF 18-18-6 | RCGF 24-24-8 | RCGF 32-32-10 | RCGF 40-40-12 | |
| Capacity(500ml)(b/h) | 4000-6000 | 6000-10000 | 10000-15000 | 15000-20000 | |
| filling precision | 1%(liquid level) | ||||
| bottle size | bottle diameter:50-100mm;Height:150-310mm | ||||
| suitable cap shape | plastic screw cap | ||||
| water pressure of washing bottle | 0.2-0.25Mpa | ||||
| Gas consumpation(m3/min) | 0.1 | 0.4 | 0.5 | 0.5 | |
| power(kw) | 4.4 | 5.2 | 6.2 | 7.8 | |
| weight(kg) | 2800 | 4500 | 6000 | 7000 | |
| dimension(L ×W ×H)mm | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 | |
Details:
1. We are the fruit juice machine & fruit juice making machine manufacturer in China.
2. Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your enquiry.
3. Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
4. Quotation: Prices offered and accepted.
5. Place order as per contract or discussion.
