Name: | 3 In 1 Juice Filling Machine | Material: | Stainless Steel 304 |
---|---|---|---|
Washing Head: | 24 | Capping Head: | 8 |
Voltage: | 110/220/380V | Filling Head: | 24 |
Automatic: | Automatic | Filling Speed: | 13500BHP |
High Light: | juice bottle filling machine,fully automatic bottle filling machines |

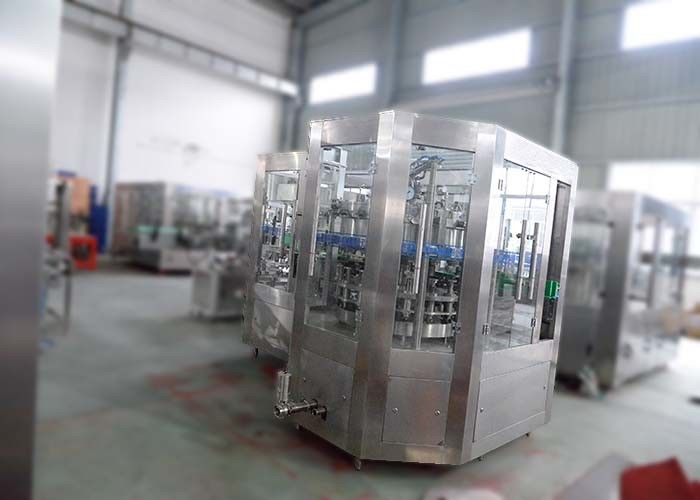

3 In 1 Automatic Fruit Juice Filling Machine 13500BHP With Touch Screen Control
Tecnical paratemers
Washing head | 24 |
Filling head | 24 |
Capping head | 8 |
Production capacity |
13500bph 200ml 12000bph 500ml 4200bph 1500ml |
Air source pressure | 0.5-0.6MPa |
Rinsing water pressure | 0.15-0.2 MPa |
Bottle height | 150-340MM |
Bottle diameter | Φ50-Φ110MM |
Rinsing water consumption | 1.2T/H |
Filling way | Micro-Negative Filling |
Power | 3ph, 380V/50Hz,3KW |
Overall size | 2880*2180*2450 (L*W*H) mm |
Weight | 5500Kg |
Advantage of 3 in 1 juice filling machine
1. The machine is designed more compact, more stable of controlling system, easy to operate and high quality.
2. Using high accuracy and high speed filling valve.
3. Controlling system has the liquid level control function, lack of cap detection alarm function, automatic alarm for card bottles function etc.
4. Using advanced touch screen control, can realize human-machine conservation.
5. Liquid level is more accurate without water loss, ensuring the quality of filling.
6. Capping heads use magnetic torque device, ensuring the capping effect and protect the bottle cap.
Service:
After-sales service:
We guarantee the quality of the main parts within 18 months.If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship,
brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract.Quality guarantee period is within 12 months from B/L date.The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair
parts cost.
Installation:
The seller would dispatch his engineers to instruct the installation.Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).
