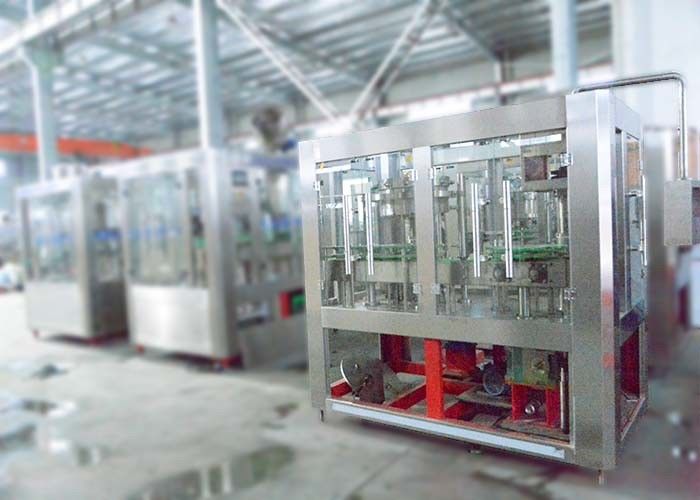

110V Automatic Fruit Juice Filling Machine SUS304 Non Carbonated Drink Filling Machine

110V Automatic Fruit Juice Filling Machine SUS304 Non Carbonated Drink Filling Machine

 Tecnical paratemers

Features:

1. with micro-negative pressure filling theory, filling speed is quick and precision is high; the filling level is adjustable.

2. With spring type washing clipper, empty bottles are turned 180°along the guiding roll for inside rinsing; the washing nozzle adopts plum blossom shape multiple holes to rinse the bottle bottom, washing efficiency is high.

3. rotating type cap unscrambler adopts air unscrambling, with functions of cap surface damage-resistance, alarm if lack of cap, auto cap feeding etc.

4. with bottle neck clipping transmission structure, the bottle conveyance is stable; very convenient and swift to use different bottles for filling in the same machine by adjusting the height of conveyor and several exchanging parts.

5. Capping machine adopts France technology, the capping is by magnet torque; the cap catching adopts twice catching to ensure the veracity.The capping force is adjustable, constant torque capping will not damage caps and the cap is good sealed and reliable.

6. The whole machine is operated by touch screen, controled by PLC and frequency convertor etc., with functions of no bottle no cap feeding, waiting when lack of bottles, stopping if bottle is blocked or no cap in cap guiding pipe.
