Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Drink Filling Machine / Juice Filling Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Type: | Filling Machine |
| Application: | Beverage | Packaging Material: | Plastic |
| Material: | SUS304/SUS 316L | Function: | Washing Filling Capping |
| Filling Range: | 200~2000ml | Capacity: | 5000-30000BPH |
| Highlight: | 3 in 1 water filling machine,pet bottle water filling machine |
||

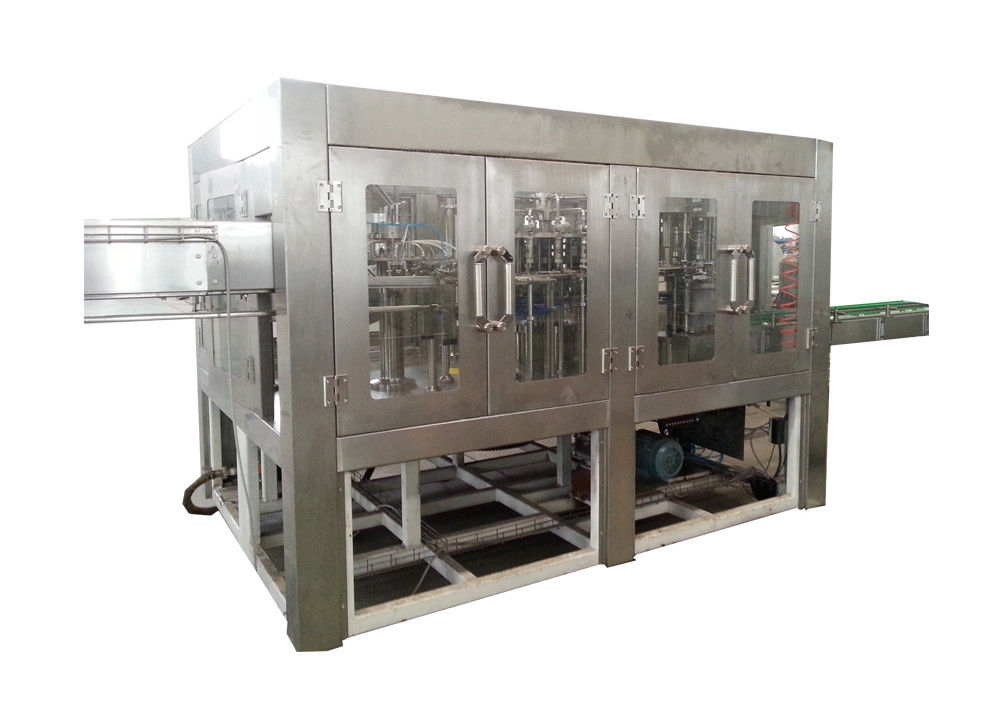

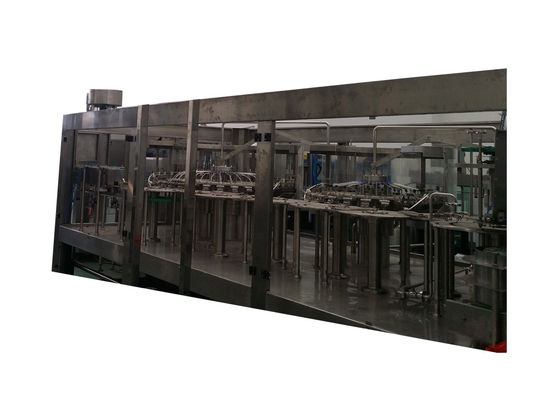

Electric Hot Juice Filling Machine , Monoblock Filling And Capping Machine
Introduction:
Hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
Technical features:
1, Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2, Sanitary filling head system is of umbrella structure, high filling speed.
3, Perfect filling temperature control system.2, Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
4, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
5, Return tank system has the function of supplying the material automatically.
6, Perfect CIP system
The complete line includes:
Water treatment system;
Beverage pretreatment system;
Blow molding system;
Filling system;
Downstream packaging system: Labeling machine, packing machine, palletizing system, etc.
Technical parameters:
| Technical Parameters: | |
| Number of Filling Valves | 12,16,24, 32, 40, 50, 60, 72, |
| Filling Speed | 5, 000-30, 000BPH (500ml) |
| Type of Bottles | PET Bottles of various shapes |
| Bottle Height | 150-320(mm) |
| Bottle Diameter | φ 50-110(mm) |
| Filling Temperature | Hot Filling |
| Filling Principle | Gravity Filling |
| Filling Product | Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc. |
