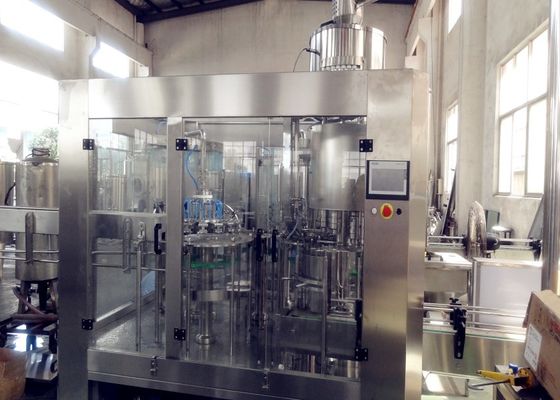

Electric Vial Liquid Beverage Filling Machine , Pure Water Filling Machine For Plastic Bottle

Electric Aseptic Beverage Filling Machine , Pure Water Filling Machine For Plastic Bottle


Introduction:
1. Magnetic torque is used for screw capping,and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.
2. All parts that directly contacting with water are made of high stainless steel. The critical electrical components are from famous international companies, such as mitsubishi, omron and other famous brands.
3. The mineral water filling machine is consisted of ringsing-filling-caping all together.
4. The new generation of stainless steel grab is adopted and the grabs have no contact with the arew above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
5. The advanced gravity filling technology used in this machine makes the filler quick,steady and accurate.

Technical Parameter

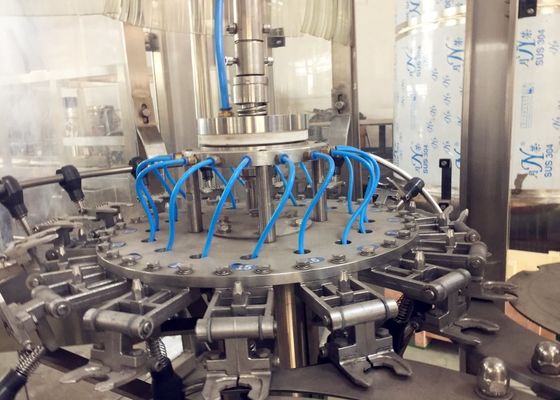

Rinsing part

1) The rotary wheel is a fully AISI304 stainless steel welded structure.
2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.
3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water. Covering of bottle clamps and elevator are product of IGUS

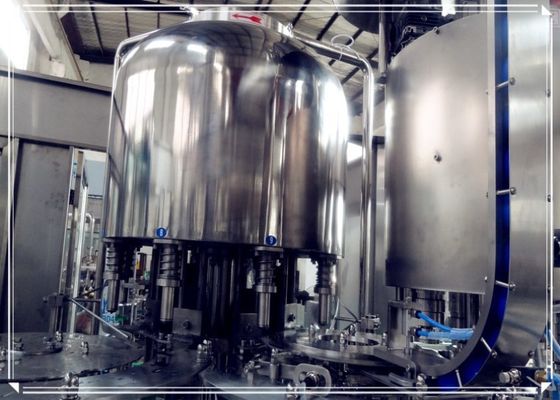

Filling part

1) The filler is designed and manufactured with application of Italy technology, providing
hardware guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel AISI304.
3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

Capping part

1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.


Standard bottled water processing line is as following:
1). The raw water will be purified and sterilized after passing through the water treatment system, and will be stored in the purified water storage tank;
2). Automatic bottle blow molding machine is connected with the water filling machine by the Air conveyor
3). Purified water will be pumped into the water filling machine; At the same time, empty bottles pass through the rinsing, filling and capping 3-in-1 monoblock, the bottles will be rinsed, filled and capped.
