| Name: | Carbonated Beverage Filling Machine | Capping Head: | 10 Head |
|---|---|---|---|
| Bottle Type: | Small Square Bottle,round Bottles | Washing Head: | 40 Head |
| Filling Head: | 40head | Material: | SUS 304 ,we Can According To Your Requirement To Customize SUS 316 |
| Highlight: | carbonated soda filling machine,automatic soft drink filling machine |
||

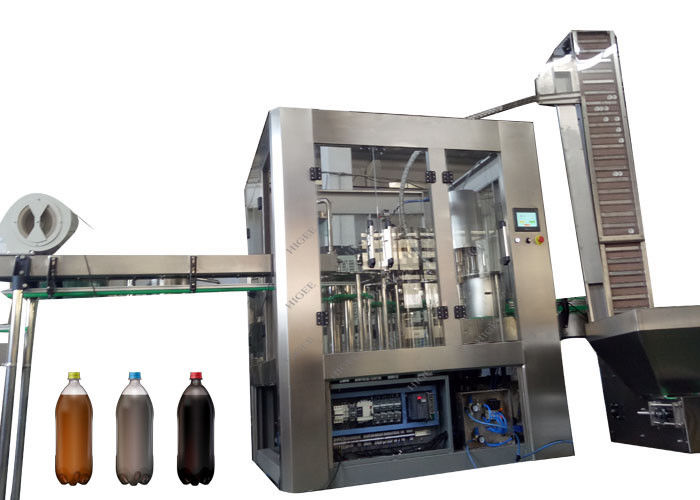

3 In 1 Monoblock Carbonated Soft Drink Filling Machine 10 Capping Head
Feature:
1. Adopt new type filling valves which are especially designed for plastic bottles. The returned air and the liquid in filling tank are insulated to insure cleanliness of the filled beverages.
2. Adopt advanced magnet clutches for capping with adjustable torsional moment to insure capping safely and reliably.
3. All parts contacting with beverages adopt top grade stainless steels whose surfaces are polished till smooth for easy rinsing. The sealing materials are EPDM rubber.
4. Carbonated beverage filling line/carbonated drink machine/carbonated filling machine/carbonated beverage machinery/carbonated filling line
5. Adopt PLC as center control, make use of pressure transmitter and electromagnetism pneumatic valve to measure liquid level, keep balance of filling pressure to insure stable liquid level.
3 in 1 monoblock carbonated drink filling machine are manufactured by advanced technology, and we have completely equipment, so they enjoy fast sales. The filling line combines rinsing bottles, filling bottles and capping bottles together with PLC control. It is mainly used for plastic bottles with carbonated beverages and non-carbonated beverages.
Technical parameter:
Model | 8-8-3 | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 | 60-60-15 |
Capacity 0.5L/bottle/h | 3000 | 3000- 5000 | 3500-5500 | 6000-8000 | 7500-15000 | 10000-18000 | 16000-24000 | 20000- 32000 |
Filling precision | <= +5 mm (Liquid level) | |||||||
Filling pressure | <= 0.4 Mpa | |||||||
PET Bottle specification | Bottle Diameter 50-115 mm Height 160-320 mm | |||||||
Suitable cap shape | Plastic Screw Cap or Crown Cap | |||||||
Total power | 3.6 | 4.4 | 5.2 | 6.2 | 6.2 | 7.5 | 11 | 15 |
Weight <kg> | 2000 | 2500 | 3500 | 4500 | 6000 | 7200 | 10000 | 11500 |
